Schonstedt

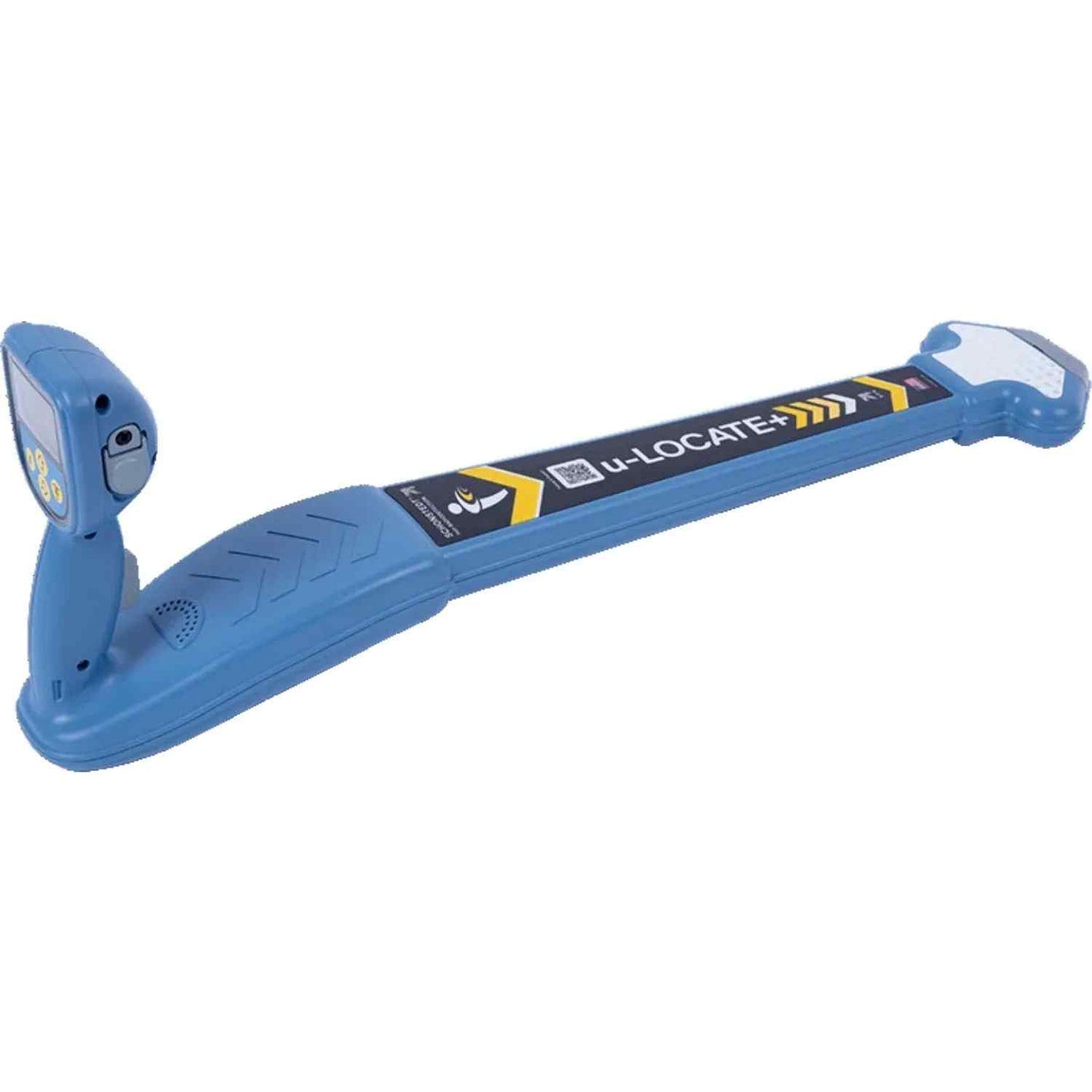

u-LOCATE Pipe & Cable Locator

u-LOCATE Pipe & Cable Locator

Model

Product Description

Trust, but verify. Scan an area for utilities before you dig.
Does your job involve excavating in or around buried pipes and cables? Damaging buried utilities can be costly and dangerous. u-LOCATE allows you to quickly and accurately locate underground utilities, helping prevent costly damages, utility strikes, and service outages.

Avoid hitting or damaging buried utilities
Robust locator, designed for all types of weather and environments
Easy to use, right when you need it
Left/right arrows and audio signals help guide you towards the buried utility
Discriminates between utilities and other buried materials – locate the utility you want
Depth estimation at the press of a button
Minimize downtime with online training videos and support

Technical Specifications

Feature u-LOCATE u-LOCATE+
Operating Frequencies 82kHz 33kHz, 82kHz
Sonde - 512Hz
Passive Mode 50/60Hz 50/60Hz
Max Depth Active Mode 19’ (5.8m) 19’ (5.8m)
Max Depth Sonde Mode - 5’ to 15’ (1.5m to 4.5m)
Positional Accuracy 5% 5%
Battery Requirements 6 x AA Receiver 6 x AA Receiver
Usage Hours 20 hours 20 hours
Audio Output 10-1500Hz (determined by signal strength)
0-70 dB SPL (volume controlled)		 10-1500Hz (determined by signal strength)
0-70 dB SPL (volume controlled)
Ingress Protection Rating Weatherproof to NEMA3S and IP65 Weatherproof to NEMA3S and IP65
Construction High Impact ABS Plastic High Impact ABS Plastic
Operating Temperature -10 to + 50°C (14 to 122°F) -10 to + 50°C (14 to 122°F)
Weight Including Batteries 2.4 lbs (1.1 Kg) 2.4 lbs (1.1 Kg)
Warranty 1 year (with an option to extend to 3 years at the point of purchase) 1 year (with an option to extend to 3 years at the point of purchase)
Overall Dimensions 25.6” x 3.9” x 8.7” (65.1cm x 9.9cm x 22.1cm) 25.6” x 3.9” x 8.7” (65.1cm x 9.9cm x 22.1cm)
