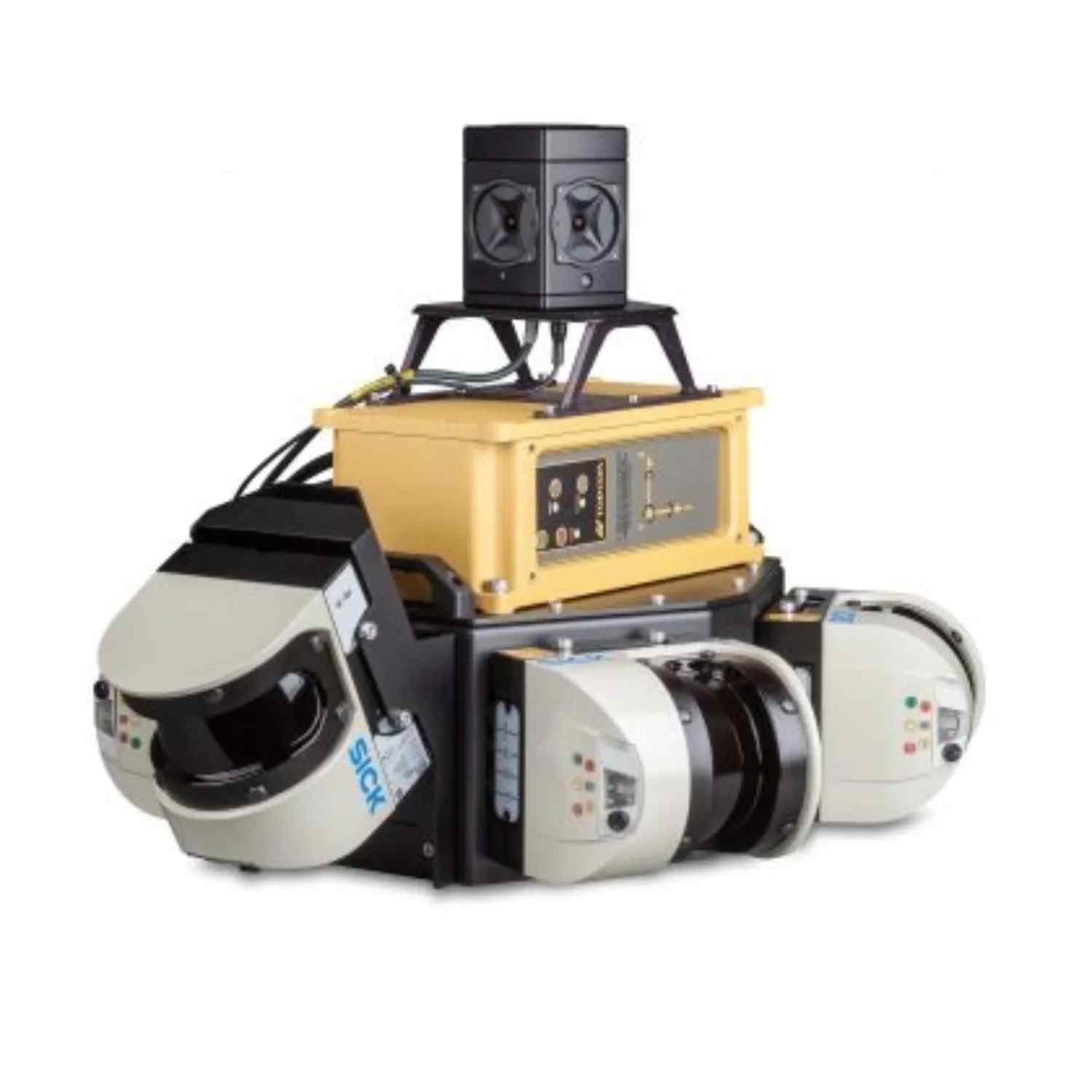

IP-S2 Series - 3D Mobile Mapping System

Fully Integrated High Density 3D Laser Scanning and Digital Imagery Mobile Mapping System

3D scanning of road and roadside features
Delivers high density point clouds and 360° spherical imagery
High accuracy IMU options without export control
Simple Map, Extract, Deliver Workflow
Integrated, turnkey solution
Channels 40 channels, dual constellation, dual frequency
GPS+GLONASS L1/L2
Low Signal Tracking Down to 30 dBHz
Reacquisition < 1 sec
Real Time Position & Raw Data Up to 10 Hz update rate
Imaging Sensor Type Six (6) Sony progressive scan color CCDs (five in horizontal ring, one on top)
Maximum Panorama Resolution 5400 (H) x 2700 (V)
Field of View >80% of full sphere, 360° Panorama
System Field of View 360° Vertical Field of View, X-configuration when using 5 scanner option
Field of View per scanner 190° max
Scanning Frequency 75 Hz | 100 Hz
