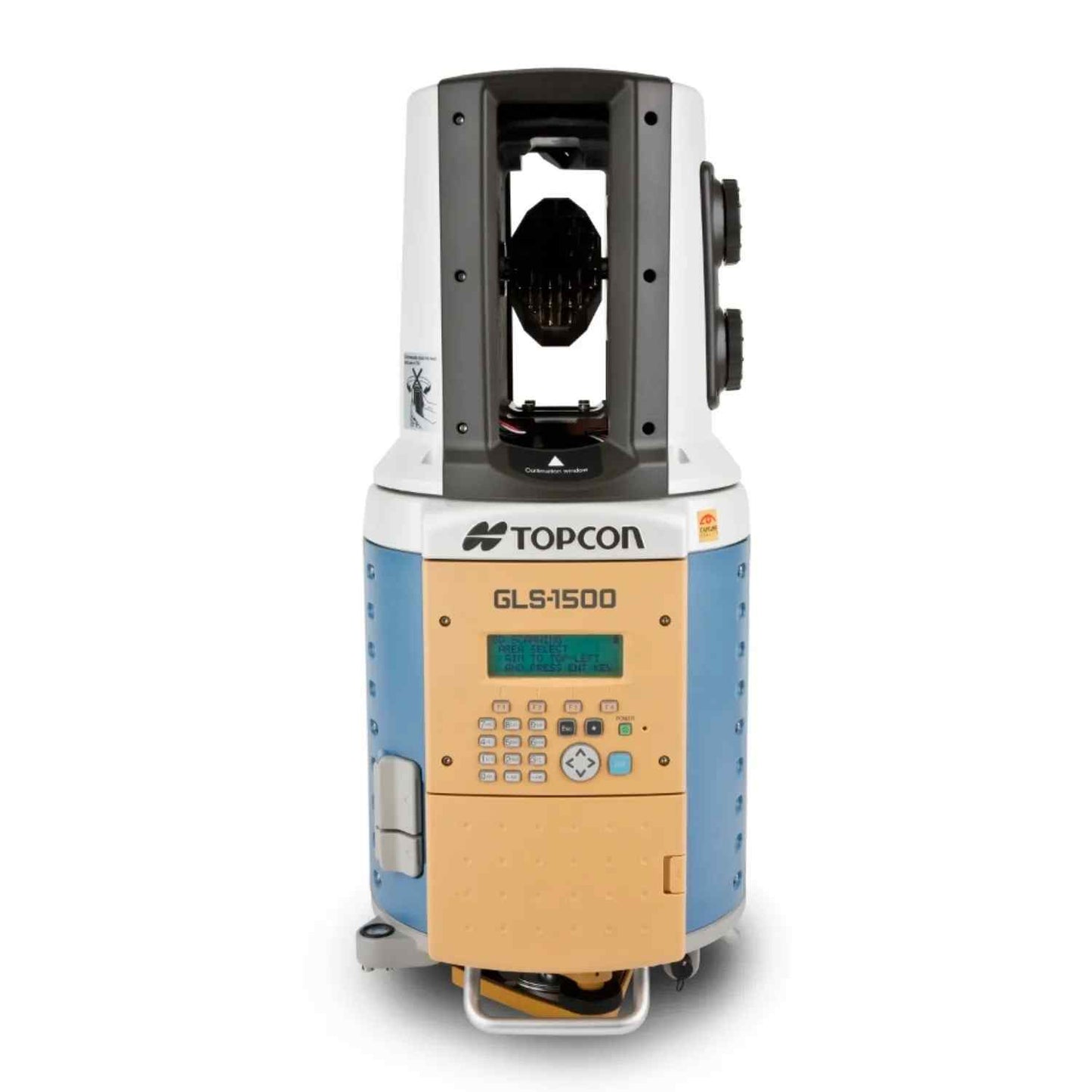

GLS-1500 - 3D Laser Scanner

Topcon’s GLS-1500 laser scanner leaves nothing behind—except the competition. The operator-friendly design allows for quick and hassle-free setups which saves time and improves productivity. With batteries and data collector on-board, Topcon’s GLS-1500 is lightweight and cable-free. Transportation is a cinch. While other laser scanners take two people to unload, setup, operate, and load, the GLS-1500 is a one-man instrument.

Small size, big performance

This robust scanner sends out a laser beam that captures data at 30,000 points per second at a range of 500 ft. (150m) to a typical surface, and with an extended range to 1100 ft. (330m) for more reflective surfaces. Unique to Topcon’s GLS-1500 is the mechanical ability to select from multiple lens arrays to control the laser beam. This provides consistent 0.16 in. (4mm) accuracy throughout the range from 3 ft. to 500 ft. (1m to 150m).

Maximum Range at specified reflectivity 1100 ft. (330m) at 90%, 500 ft. (150m) at 18%
Calculated Range at 18% 500 ft. (150m)
Minimum Range 3.28 ft. (1m)
Single Point Accuracy Distance: 0.16 in. at 500 ft. (4mm at 150m)
Dual Axis Compensators Angle (vertical): 6” Accuracy, Angle (horizontal): 6” Accuracy

LASER SCANNING SYSTEM
Type Pulsed
Color Invisible (eye-safe laser)
Laser Class Class 1
Scan Rate 30,000 points/second
Scan Density (Resolution) Spot Size: 0.24 in. at 130 ft. (6mm at 40m), Maximum Sample Density: 0.04 in. at 328 ft. (1mm at 100m)
Field-of-view (Per scan) Horizontal: 360° (maximum), Vertical: 70° (maximum)
Color Digital Imaging 2.0 megapixels digital camera

ELECTRICAL
Power Supply On-board Lithium-ion battery BT-65Q x4
Power Consumption <25W
Maximum Operation Time Approx. 4.0 hours per 4 pcs
Hot-swappable Battery Hot-swap (2 by 2)

ENVIRONMENTAL
Operating Temperature +32°F to +104°F (0°C to +40°C)
Storage Temperature +14°F to +140°F (-10°C to +60°C)
Dust/Humidity IEC Specification IP52

PHYSICAL
Dimensions 9.5 in. x 9.5 in. x 22.3 in. (240mm x 240mm x 566mm)
Weight 35 lbs. (16kg) w/o on-board battery and tribrach
