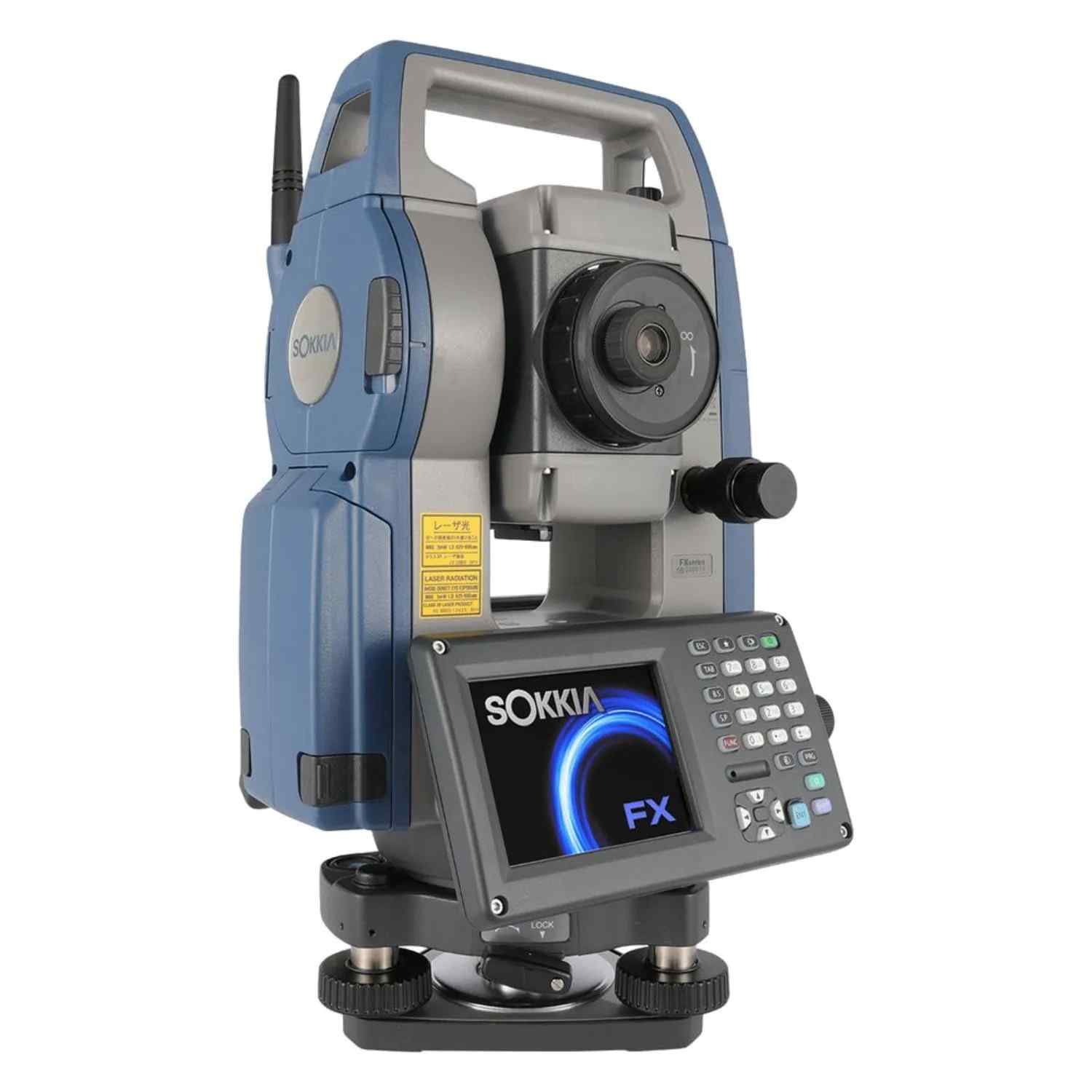

FX Series Advanced Total Station

Advanced features for maximum measurement versatility and unmatched product and data security.

The FX total station provides the advantage of on-board Windows® CE operating system and comes standard with MAGNET™ Field, a cloud-based application software for unmatched measurement ease and data security.

Windows® CE operating system in compact, rugged body
MAGNET or GeoPro Field on-board application software
Advanced Angle Measurement System
RED-Tech advanced reflectorless measurement
Long-Range Bluetooth® wireless communication
Available in 1, 2, 3, and 5 second models
Angle Measurement 1", 2", 3", 5"
Tilt Compensation Dual Axis, Compensation Range +/- 6'
Wireless Communication Bluetooth Class 1 - 300m (980ft)
No obstacles, few vehicles or sources of radio emissions/interference in the near vicinity of the instrument, no rain.
Dust/Water Protection IP65
Operating Temperature: -20 to +50ºC (-4 to +122ºF)
Operating Time Approx.: 20 hours (single distance measurement every 30 seconds)
