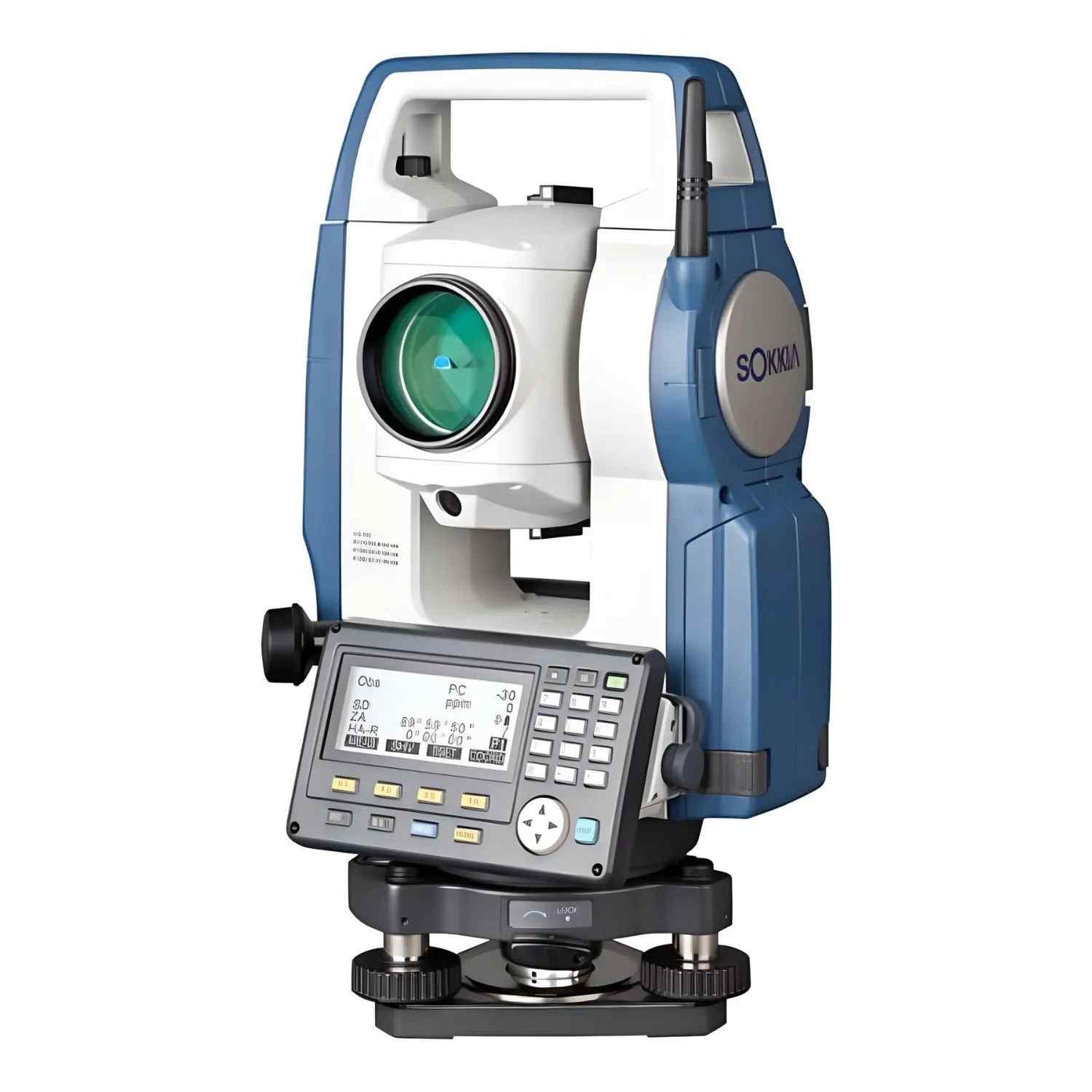

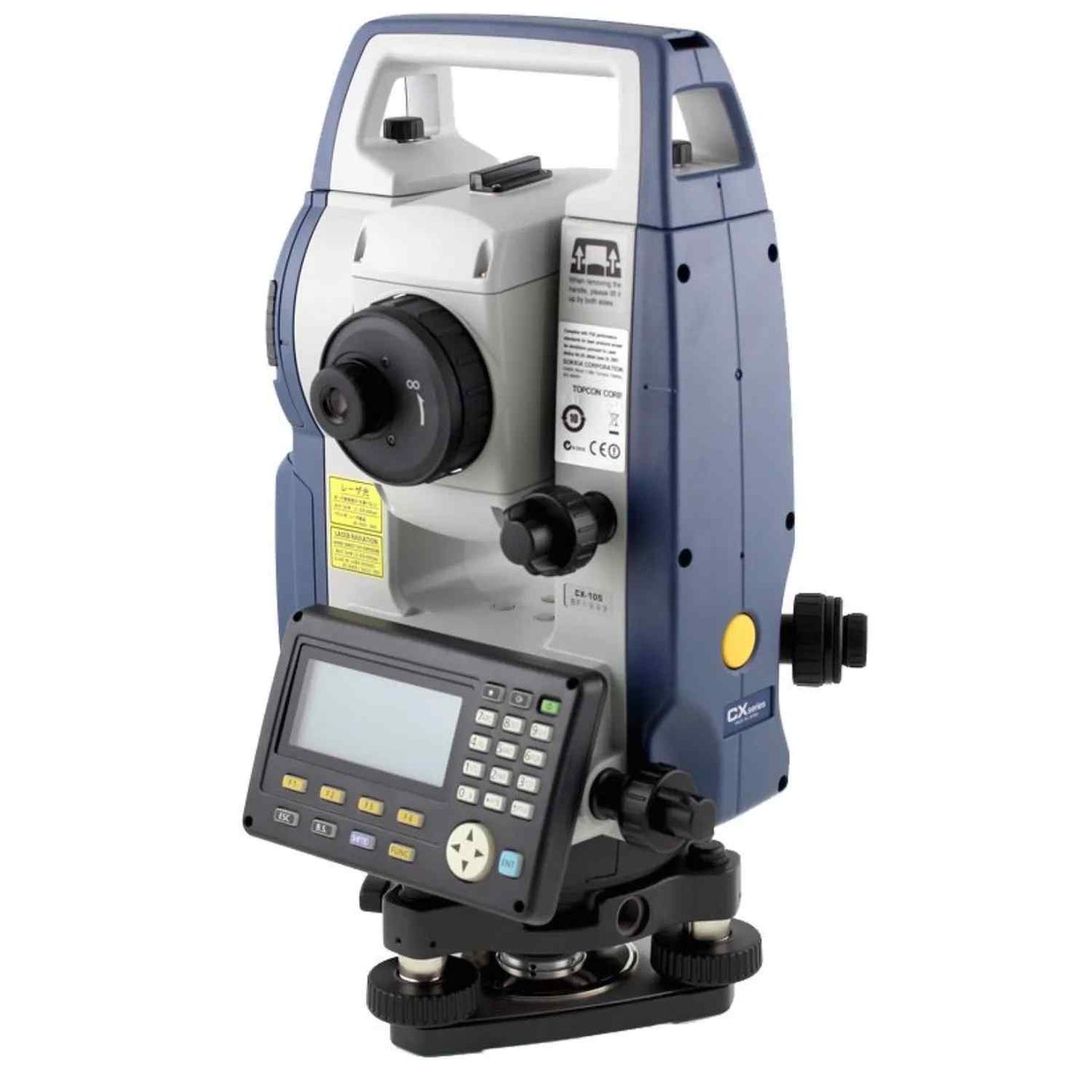

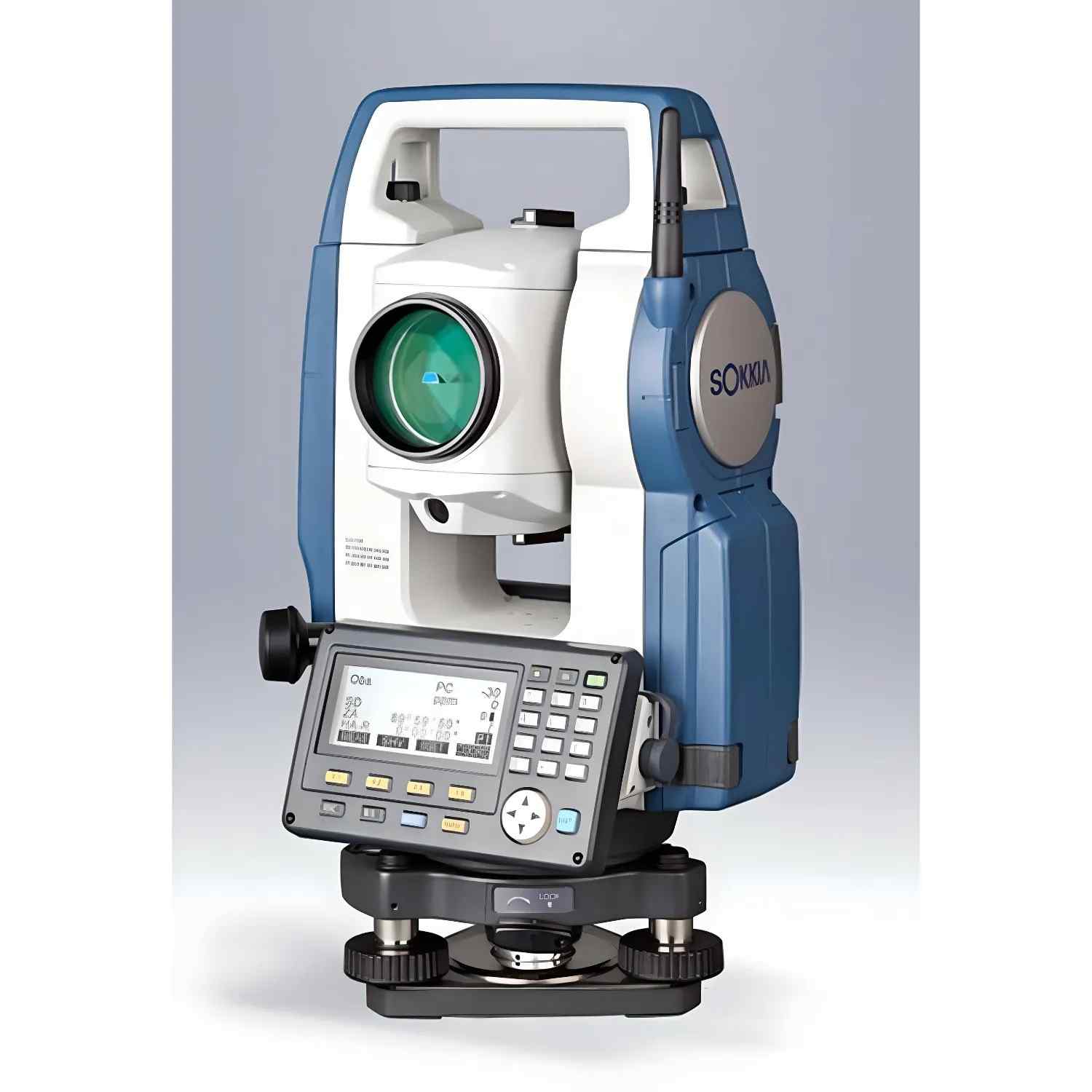

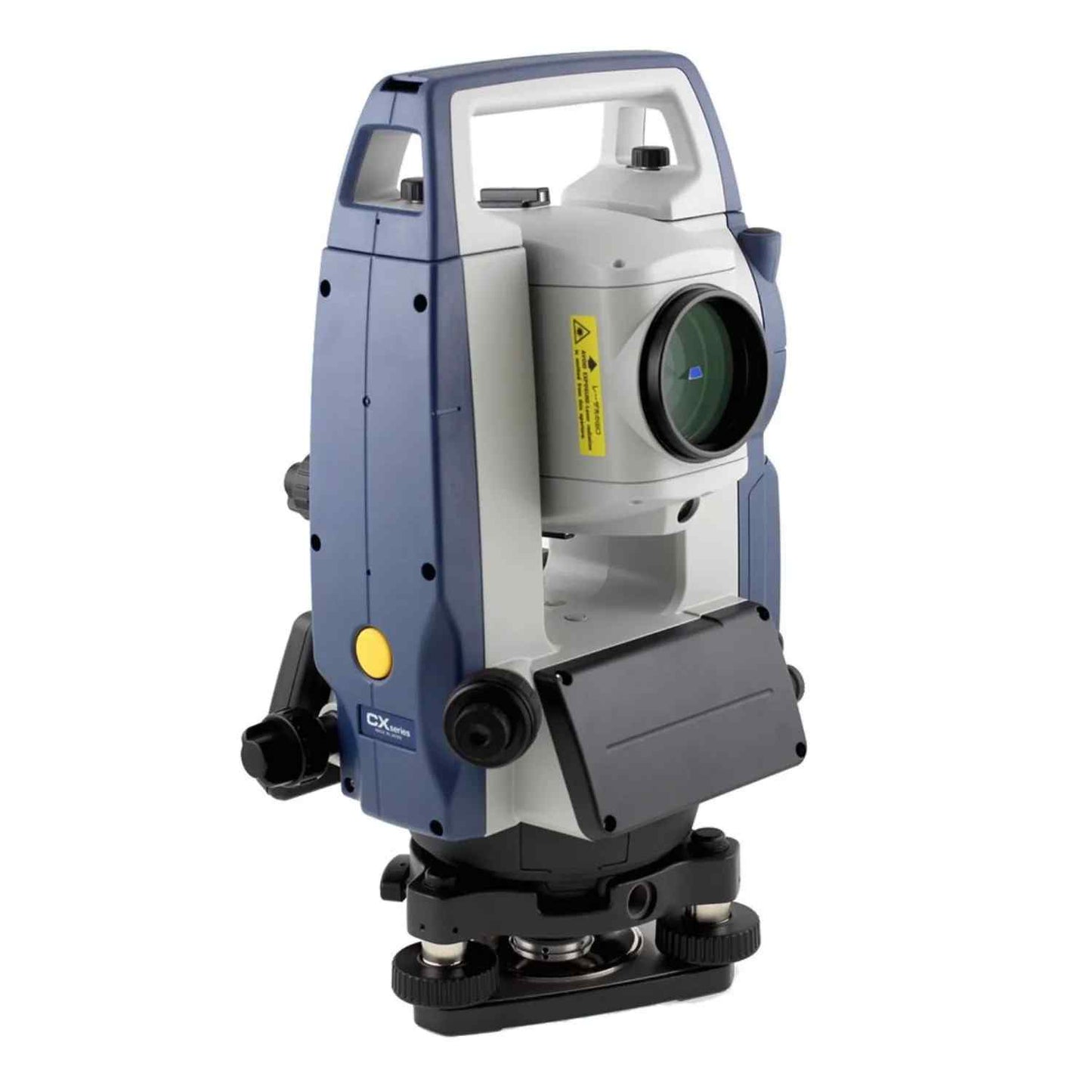

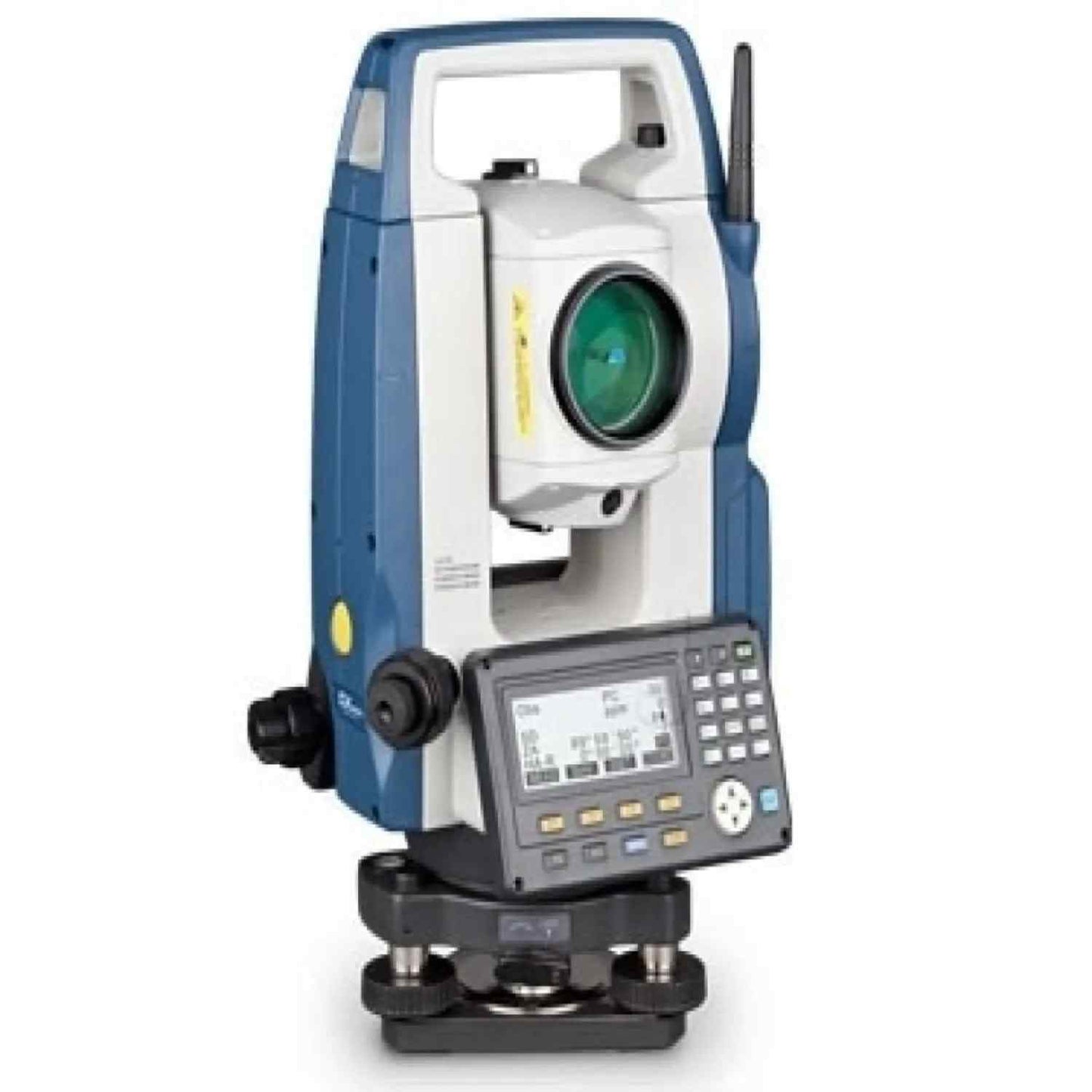

CX Series Reflectorless Total Station

Tradition meets innovation with the CX total station. Easy-to-use, high precision, rugged, and reliable. Those are Sokkia traditions. Now with the CX, we have added innovation. The CX incorporates many new technologies while still maintaining Sokkia’s easy-to-use functionality. New features include advanced RED-tech EDM for fast, pinpoint reflectorless measurement up to 500m. Its Long-Range Bluetooth® wireless communication provides data instantly to your Bluetooth-equipped controller, up to 500m away. Integrated TSshield provides unmatched remote ability to track, secure, and support your instrument. Its IP66 dustproof/waterproof rating, heavy-duty metal chassis and handle, and work-week battery life make the CX the clear leader in conventional total stations.

Advanced Angle Measurement System RED-Tech advanced reflectorless measurement Long-Range Bluetooth® wireless communication TSshield security, tracking, and remote diagnostic support Longest battery life.

36 hours Available in 1, 2, 3, 5, and 7 second models

Angle Measurement: 1″, 2″, 3″, 5″, 7″

Distance Measurement (Single Prism): 1.3 to 4,000m (4.3 to 13,120ft.) / Under good conditions*6: 5,000m (16,400ft.)* Good conditions: No haze, visibility about 40km (25 miles), overcast, no scintillation.

Distance Measurement (Reflectorless) 0.3 to 500m (1.0 to 1,640ft.)* Good conditions: No haze, visibility about 40km (25 miles), overcast, no scintillation.

Accuracy (Single Prism) (2 + 2ppm x D) mm

Accuracy (Reflectorless) (3 + 2ppm x D) mm*

Measuring range:0.3 to 200m

Measuring Time Fine: 0.9s (initial 1.7s), Rapid: 0.7s (initial 1.4s), Tracking: 0.3s (initial 1.4s)
